KS-ADAC is a real-time testing, control and monitoring system.

preview

REAL-TIME CONTROL.

Highly accurate and freely configurable, it is ideal for a wide range of tasks from research to end of line testing

We developed KS-ADAC to meet the demands of high-quality test bed environments. The configuration is fully integrated in the TORNADO System.

PRODUCT DETAILS:

  • High performance real-time test data acquisition system
  • Signal acquisition and control
  • Freely configurable controllers
  • Processing of sequence tables
  • Calculations
  • Limit monitoring
  • Optimised for test bed applications

SYSTEM:

  • Real-time firmware guarantees reliability and fast response times
  • Real-time cycle rate up to 10 kHz, data acquisition up to 100 kHz
  • Acquisition rate and filtering can be configured separately for each channel
  • Controllers, filters, calculations, aliases and limits can be configured separately for each channel
  • Integrated monitoring for CPU load and for all configuration elements

HARDWARE INTERFACES:

  • Gigabit Host Interface to Tornado
  • 12 Mbit Profibus® DP Interface
  • Interface to KS-CANLAN
  • EtherCAT® Interface

SOFTWARE-INTERFACES:

Interface T-Sim for processing of models in real-time

  • T-SIM Matlab® Simulink®
  • T-SIM FMU

Application Example: Engine Test Bed

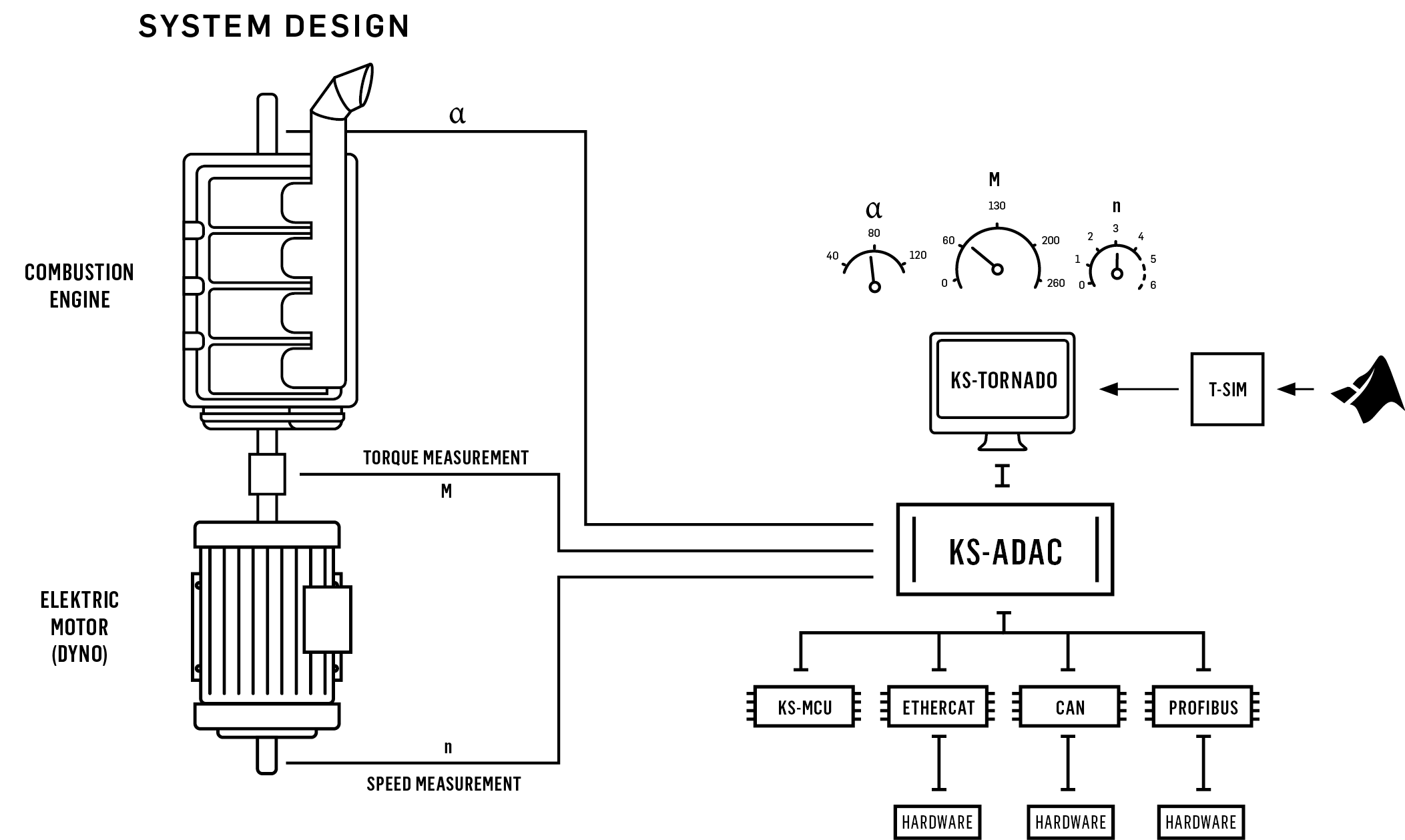

Grafic of the System Design ADAC
